Does anybody have a Photo or can tell me the correct Position of the Convertible Top Cylinder Fittings that are bolted to the rear Floors. The Bottom end of the Folding Top Hyd. Cylinder mounts to this Fitting. I am looking for the location of the 3 bolt holes in the Floor. The fitting has 2 holes on one side and 1 on the opp. side.
Does the 2 hole side face the Center or the Outside .
My Rear Floors were replaced , so I do not have any Ref.
Mark Evans
Dick Koch will answer this question, as his convert is apart and he can tell you the dimensional locations of the welded/bolted down bottom brackets.
John Q.

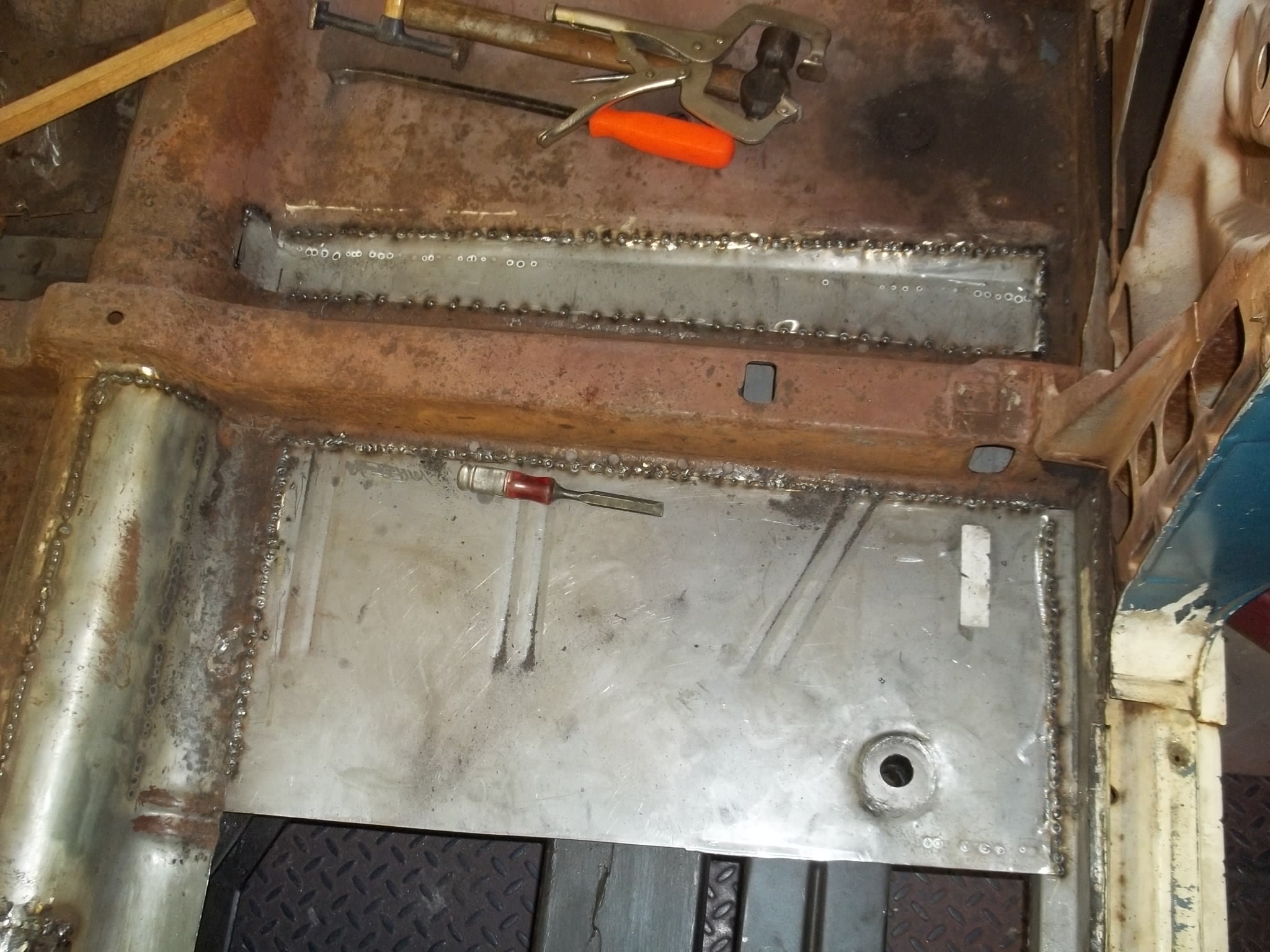

Hi Mark - I would send you pictures of the brackets installed but its raining and the convert is up on the lift with Charleen underneath. The pictures I’m sending show the broken of bolts where the brackets go. I tried getting the bolts out but gave up and welded the bracket in place. Look closely and you will see the orentation of the brackets.
Dick.
Mark - Double click on the pictures for a larger view.
Dick.
Thanks Dick
I got it.
Looks like I will have weld the outside edge, My 2 holes would end up blind in the Rocker cavity
Mark
